• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38411

• • alternative name: Emerson Television

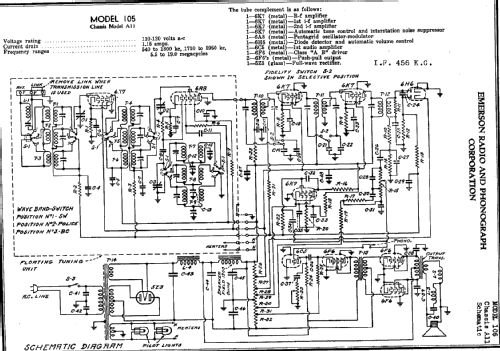

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6K7 6A8 6K7 6K7 6H6 6K7 6C5 6F6 6F6 6F6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 15 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 105 Ch= A11 [Console] - Emerson Radio & Phonograph

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 0 x 41 x 0 inch / 0 x 1041 x 0 mm

• Notes

• Broadcast (540 - 1800 kHz), Police (1710 - 5950 kHz) and Shortwave (5.5 - 19.0 MHz) bands. Push-pull audio amplifier. Automatic tone control and noise limiter (6K7). Ingraham console cabinet in Walnut.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before
