• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 38412
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • AC/DC-set / 105-130 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 106 Ch= U-6-B - Emerson Radio & Phonograph
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 0 x 8.75 x 0 inch / 0 x 222 x 0 mm
  • Notes

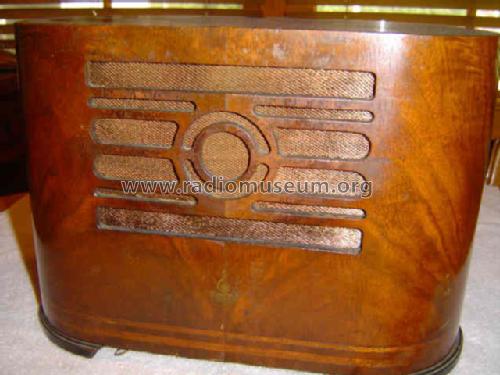

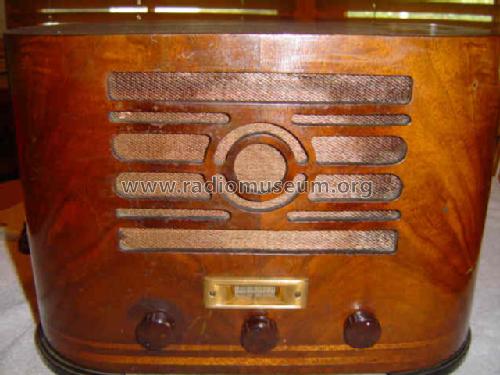

  • Broadcast (530 - 1630 kHz) and Police (1490 - 4300 kHz) bands. Automatic volume control. Cabinet in American Walnut with Maple inlays, front and back identical.

    This model was not available with Longwave band (-LW).

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 6 = 1935 and before
