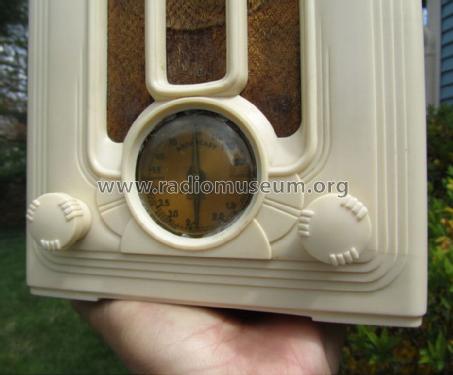

For model 108LW Ch= U-5-B, Emerson Radio & Phonograph Corp.; New York, NY:
Knobs might not be original

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 43 25Z5
Main principle Superheterodyne (common); ZF/IF 132 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 105-130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 108LW Ch= U-5-B - Emerson Radio & Phonograph
Material Plastics (no bakelite or catalin)
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes LW(145-475kHz) and BC(530-1550kHz) bands. Model 110-LW use the same chassis. Colour ivory and black.
Price in first year of sale 255.00 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios (6th edition)
