• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38430

• • alternative name: Emerson Television

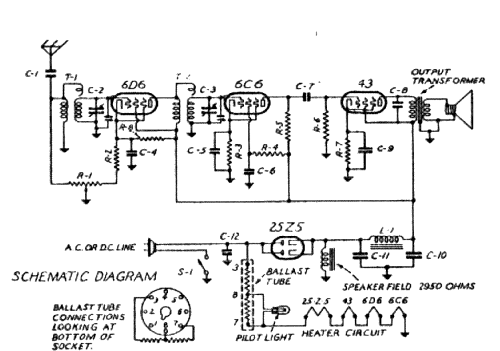

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6D6 6C6 43 25Z5

• Main principle
• TRF without regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

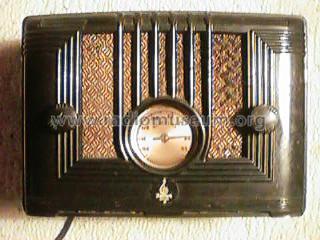

• Model: 118 Ch= U-4-B - Emerson Radio & Phonograph

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10 x 7.75 x 6 inch / 254 x 197 x 152 mm

• Notes
• BC(540-1650kHz) band.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Machine Age to Jet Age II
