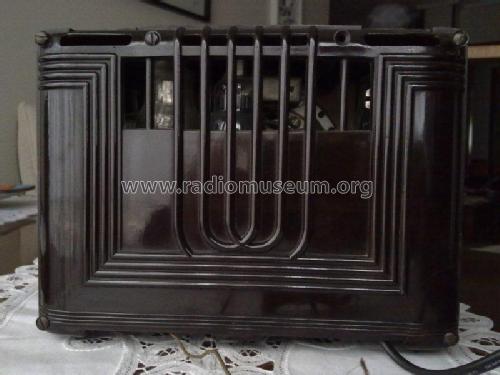

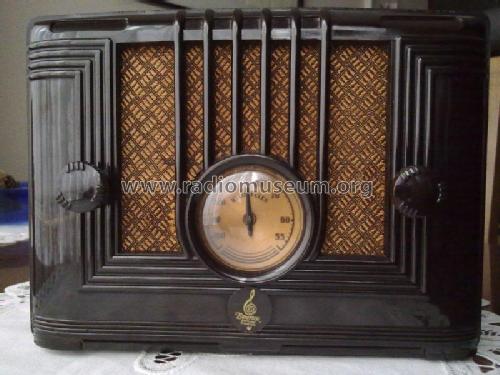

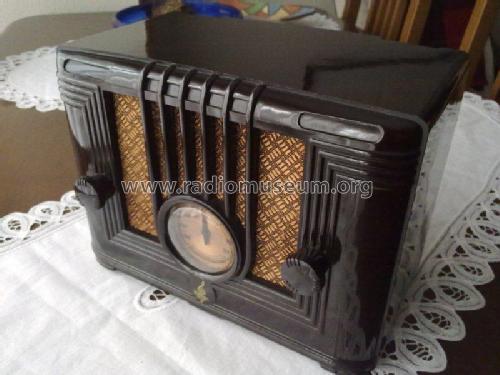

Emerson Radio &: 126 Ch= U-4-B [Radio] ID = 1190885 720x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model 126 Ch= U-4-B, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6D6 6C6 43 25Z5
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 126 Ch= U-4-B - Emerson Radio & Phonograph
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 9.25 x 7 x 6.25 inch / 235 x 178 x 159 mm
Notes

BC (545-1650kHz) band.

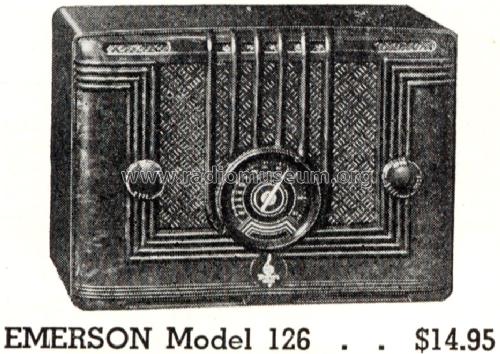

Price in first year of sale 14.95 $
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Collector's Guide to Antique Radios (6th edition) (Machine Age to J.Vol3, Stein 99)
Literature/Schematics (3) Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
