• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110482

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6D6 6A7 6D6 75 43 25Z5

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch

• Material
• Wooden case

• from Radiomuseum.org

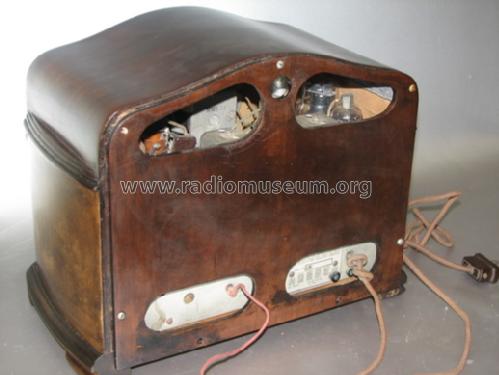

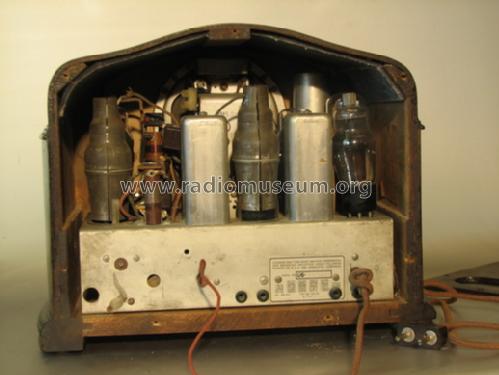

• Model: 38 Ch= U6 - Emerson Radio & Phonograph

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 260 x 195 mm / 13.4 x 10.2 x 7.7 inch

• Notes
• Volume control in first audio stage.
  RF stage used as aperiodic amplifier on SW band only.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
