• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38551

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AG5 6BE6 6BA6 6BA6 6AL5 6AU6 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 528 Ch= 120038 - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Notes

• BC (530-1620kHz) and FM (87.75-108.5MHz) bands. Built-in loop antenna for BC band.

• Price in first year of sale
• 99.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 07, 1947

• Literature/Schematics (2)
• Emerson Radio and Television Service Manual (Page 59)

• Literature/Schematics (3)

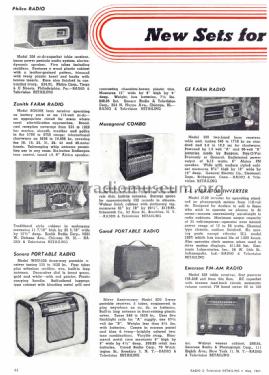

• Radio Retailing (Radio & Television R.) (May 1947 page 44.)

• Literature/Schematics (4)
• Emerson Folder for 1947, Folder Form. 48-107, 10-47 for 1948.
