734B Ch= 120169B, Ch= 120152F
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1953 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 363245
-
- alternative name: Emerson Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AU6 6AL5 6AV6 6V6GT 12AU7 6C4 6SN7GT 6W6GT 12AU7 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 5U4G 12BE6 12BA6 12AT6 50C5 35W4 21MP4
- Main principle
- Superhet and TRF, very rare principle
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 734B Ch= 120169B, Ch= 120152F - Emerson Radio & Phonograph
- Shape
- Console with any shape - in general
- Notes
-
Emerson model 734B is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 120169B, TV-AM radio - phono combination, VHF tuner 470696 and picture tube 21MP4.
- Literature/Schematics (1)

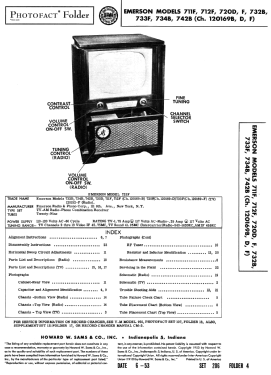

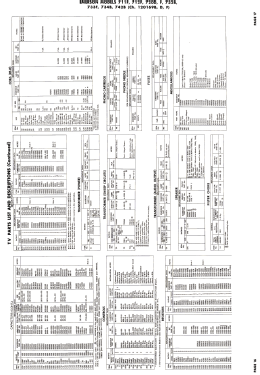

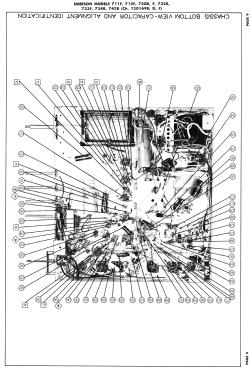

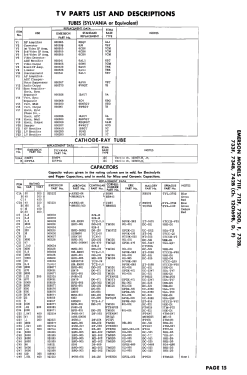

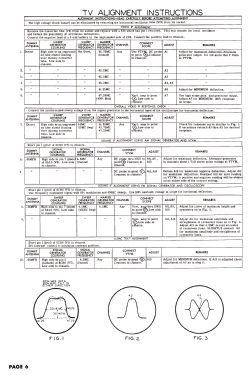

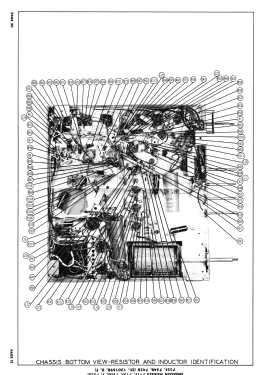

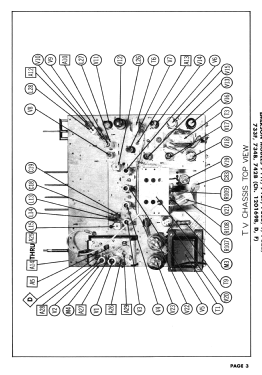

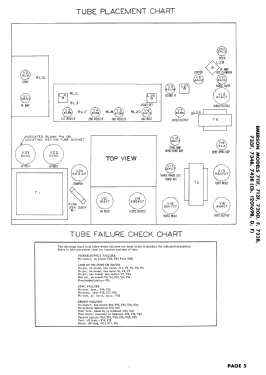

- Photofact Folder, Howard W. SAMS (Set 206, folder 4, dated 6-53)
