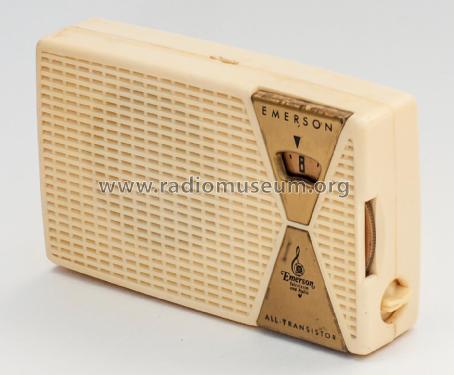

Emerson Radio &: All Transistor 849 Ch= 120324 [Radio] ID = 2504328 1400x1154
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor 849 Ch= 120324, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: All Transistor 849 Ch= 120324 - Emerson Radio & Phonograph
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957

Model page created by Egon Penker. See "Data change" for further contributors.
