All Transistor 859
Emerson Radio & Phonograph Corp.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Emerson Radio & Phonograph Corp.; New York, NY
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107443
-
- alternative name: Emerson Television
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

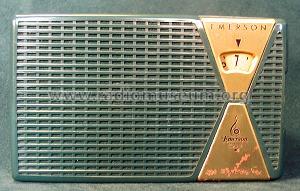

- Model: All Transistor 859 - Emerson Radio & Phonograph
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
The Emerson 859 is similar to the earlier 849 but has an earphone plug at the back.
Hand-wired with oval transistors mounted on sockets.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
