A-132 Ch= A; Emerson Radio & (ID = 662004) Radio
Emerson Radio &: A-132 Ch= A [Radio] ID = 662004 862x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-132 Ch= A, Emerson Radio & Phonograph Corp.; New York, NY:

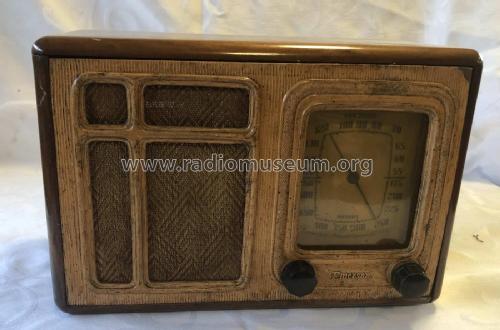

this is a frontal shot of my A132 from 1936 which clearly shows the Repwood wood front on this set. I purchased it on ebay & had to repair many things to get it operational again.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 76 or 75 43 25Z5 or L49B
Semiconductors (the count is only for transistors) 2UR-224
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: A-132 Ch= A - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12 x 8.25 x 6.75 inch / 305 x 210 x 171 mm
Notes

Models with serial number below 799301 use tube 76 and have only one audio stage.

Net weight (2.2 lb = 1 kg) 8 lb (8 lb 0 oz) / 3.632 kg
Price in first year of sale 19.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 66.)
Literature/Schematics (3) Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.
