AD-108 Ch= AD

AD-108 Ch= AD; Emerson Radio & (ID = 214416) Radio
AD-108 Ch= AD; Emerson Radio & (ID = 1412772) Radio AD-108 Ch= AD; Emerson Radio & (ID = 1412773) Radio
Use red slider bar for more.
AD-108 Ch= AD; Emerson Radio & (ID = 1412772) Radio
Emerson Radio &: AD-108 Ch= AD [Radio] ID = 1412772 800x1113
Select picture or schematic to display from thumbnails on the right and click for download.
For model AD-108 Ch= AD, Emerson Radio & Phonograph Corp.; New York, NY:

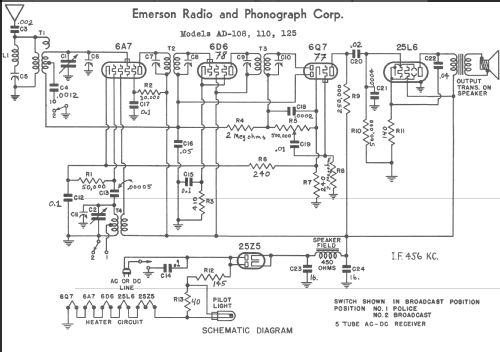

Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6Q7 25L6 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: AD-108 Ch= AD - Emerson Radio & Phonograph
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

BC (540-1580kHz) and TROP (1580-4200kHz) bands. Built-in antenna; was available in Walnut for $19.95 or Ivory for $22.95.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
