AD110 Ch= AD
Use red slider bar for more.

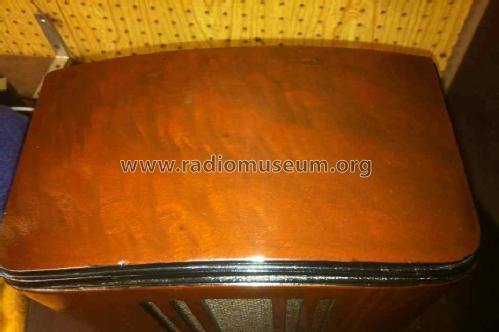

Emerson Radio &: AD110 Ch= AD [Radio] ID = 1485504 932x620
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Emerson Television | ||||
|---|---|---|---|---|---|
| Year: 1937 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 6D6 6Q7 25L6 25Z5 |
| Main principle | Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast (MW), Police, sometimes also early TV (75-200m). |
| Details | |
| Power type and voltage | AC/DC-set / 105-125 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: AD110 Ch= AD - Emerson Radio & Phonograph |
| Notes | BC(540-1580kHz) and TROP(1580-4200kHz) bands. |
| External source of data | Ernst Erb |
| Circuit diagram reference | Rider's Perpetual, Volume 8 = 1937 and before |
