• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 38734
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org

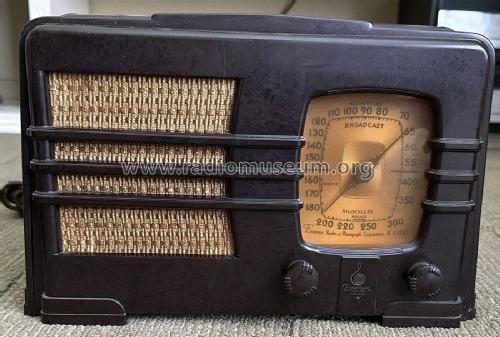

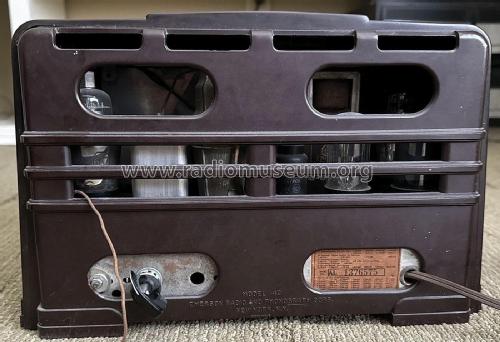

  • Model: AL149 Ch=AL - Emerson Radio & Phonograph
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • BC(540-1580kHz) and TROP(1580-4200kHz) bands. Uses 49 volt ballast tube.

    Available in: brown bakelite, ivory plaskon or ivory & black.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
