AM-169 Ch= AM

AM-169 Ch= AM; Emerson Radio & (ID = 15797) Radio
AM-169 Ch= AM; Emerson Radio & (ID = 840616) Radio AM-169 Ch= AM; Emerson Radio & (ID = 732344) Radio
AM-169 Ch= AM; Emerson Radio & (ID = 732345) Radio AM-169 Ch= AM; Emerson Radio & (ID = 49931) Radio
AM-169 Ch= AM; Emerson Radio & (ID = 84234) Radio AM-169 Ch= AM; Emerson Radio & (ID = 732343) Radio
AM-169 Ch= AM; Emerson Radio & (ID = 84235) Radio AM-169 Ch= AM; Emerson Radio & (ID = 732346) Radio
AM-169 Ch= AM; Emerson Radio & (ID = 840628) Radio AM-169 Ch= AM; Emerson Radio & (ID = 1022962) Radio
Use red slider bar for more.
AM-169 Ch= AM; Emerson Radio & (ID = 840616) Radio

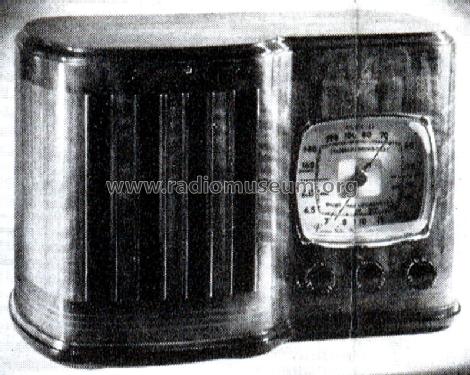

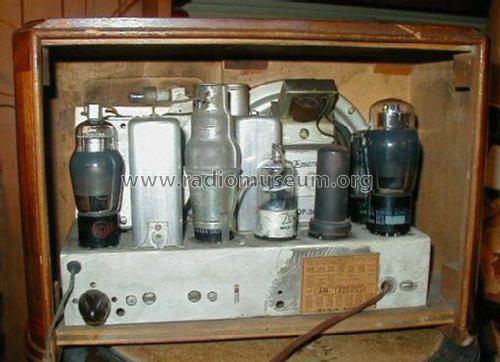

Emerson Radio &: AM-169 Ch= AM [Radio] ID = 840616 520x372
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-169 Ch= AM, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6Q7 25L6 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: AM-169 Ch= AM - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

BC (540-1730kHz) and SW (5.6-18.0MHz) bands. Ingraham cabinet with "Miracle Tone Chamber".

Price in first year of sale 39.95 $
External source of data E. Erb 3-907007-36-0
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Radio Retailing (Radio & Television R.) (September 1937.)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 68.)
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1848 models, 994 with images and 1372 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
