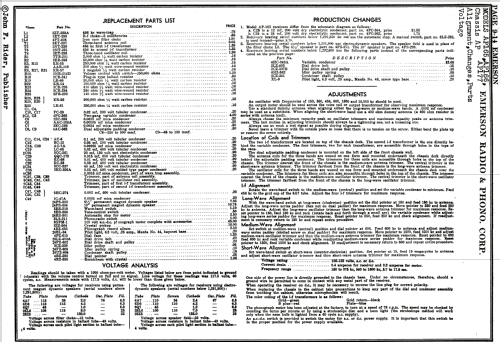

Select picture or schematic to display from thumbnails on the right and click for download.
For model AP-165 Ch= AP, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6Q7 25L6 25Z5 3CR-241
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AP-165 Ch= AP - Emerson Radio & Phonograph
Material Wooden case
Shape Console: Chairside Radio.
Notes

LW(150-375kHz), BC(540-1600kHz) and SW(5.7-17.5MHz) bands. 6.5" or 10" speaker. Models below serial number 1291800 use electrodynamic speakers with field coil. Set uses a 3CR-241 ballast tube for a 49-volt drop at .3 amps and uses two Mazda 44 bayonet-based dial lamps. Cabinet includes the Emerson "Miracle Tone Chamber." This is the AC/DC version of AR-165.

Price in first year of sale 119.95 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.
