AR-166 Ch= AR

AR-166 Ch= AR; Emerson Radio & (ID = 282999) Radio

AR-166 Ch= AR; Emerson Radio & (ID = 283000) Radio

AR-166 Ch= AR; Emerson Radio & (ID = 569978) Radio

AR-166 Ch= AR; Emerson Radio & (ID = 843966) Radio
AR-166 Ch= AR; Emerson Radio & (ID = 1413174) Radio AR-166 Ch= AR; Emerson Radio & (ID = 1413175) Radio
Use red slider bar for more.
AR-166 Ch= AR; Emerson Radio & (ID = 1413174) Radio

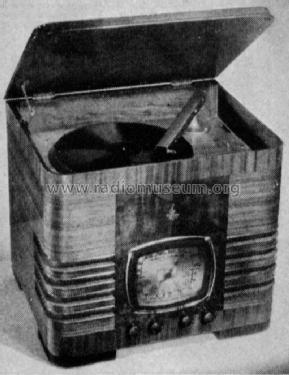

Emerson Radio &: AR-166 Ch= AR [Radio] ID = 1413174 800x1038
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-166 Ch= AR, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 76 or 6Q7 76 41 or 6AC5G 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: AR-166 Ch= AR - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

The model Emerson AR-166 with chassis AR has BC(540-1730kHz) and SW(5.6-18.0MHz) bands. Models with serial numbers below 1326200 use 76 instead of 6Q7. 6AC5 tube used only on serial numbers 1412601 to 1413601 and above 1416650. 6.5" or 10" speaker. Ingraham cabinet. See also the version AR-166 with push-pull output and only one tube for 2nd det. and 1st AF.

Price in first year of sale 89.95 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Machine Age to Jet Age III
Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
