AR-166 Ch= AR Push-pull audio

AR-166 Ch= AR; Emerson Radio & (ID = 283001) Radio

AR-166 Ch= AR; Emerson Radio & (ID = 569977) Radio

AR-166 Ch= AR; Emerson Radio & (ID = 843965) Radio
AR-166 Ch= AR; Emerson Radio & (ID = 1413171) Radio AR-166 Ch= AR; Emerson Radio & (ID = 1413172) Radio
Use red slider bar for more.
AR-166 Ch= AR; Emerson Radio & (ID = 1413171) Radio
Emerson Radio &: AR-166 Ch= AR [Radio] ID = 1413171 800x1038
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-166 Ch= AR Push-pull audio, Emerson Radio & Phonograph Corp.; New York, NY:
Scanned from the Emerson Folder Form. 38-3, 5-37 for 1938.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 6Q7 41 41 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: AR-166 Ch= AR [Push-pull audio] - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

Serials 1326200-1412601. BC(540-1730kHz) and SW(5.6-18.0MHz) bands. 6.5" or 10" speaker. Ingraham cabinet. Phonograph used a high fidelity crystal pick-up and played 10" and 12" records. Cabinet was made of hand-rubbed contrasting figured Walnut and includes the Emerson "Miracle Tone Chamber." See also the model AR-166 without push-pull output but two tubes for 2nd det. and 1st AF.

Price in first year of sale 89.95 $
Source of data Machine Age to Jet Age II
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before

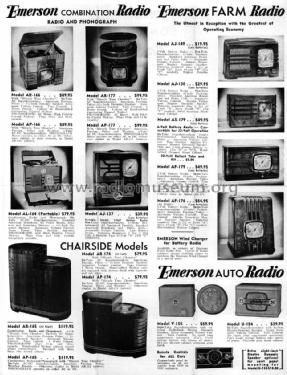

Mentioned in 1938 Emerson sales brochure with prices.

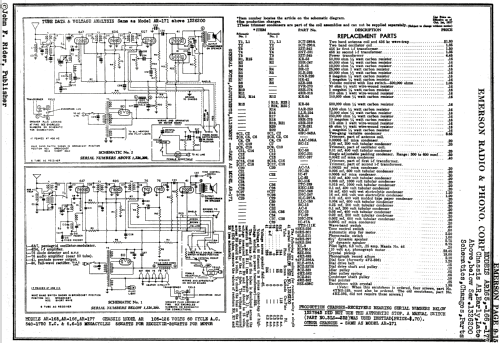

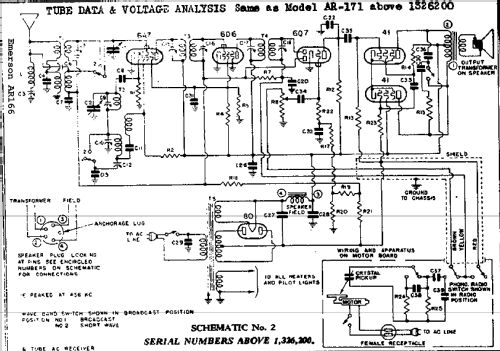

Literature/Schematics (3) Emerson Folder Form. 38-3, 5-37 for 1938.

Model page created by Götz Linss. See "Data change" for further contributors.
