• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 162156
    • alternative name: Emerson Television

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: AU-213 Ch= AU - Emerson Radio & Phonograph
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 220 x 300 x 180 mm / 8.7 x 11.8 x 7.1 inch
  • Notes
  • Cabinet by Ingraham

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Literature/Schematics (3)

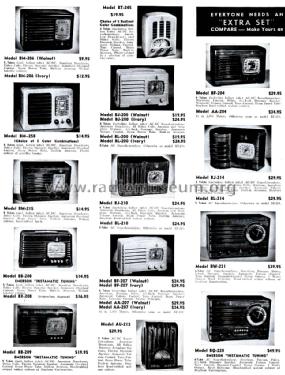

  • Emerson Folder Form. 39-22, 2-39 for 1939.
  • Author
  • Model page created by Norbert Konersmann. See "Data change" for further contributors.
