• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70867

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 25L6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AX-238 - Emerson Radio & Phonograph

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 10 x 5.5 x 5.5 inch / 254 x 140 x 140 mm

• Notes

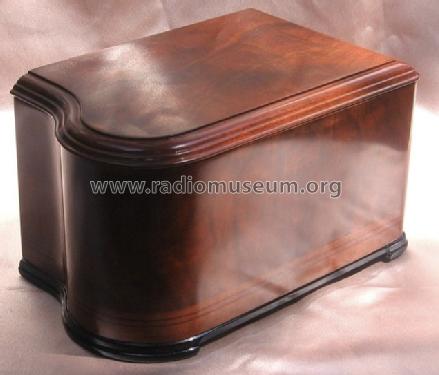

• Chest type with lift top. Ingraham cabinet.

• Price in first year of sale
• 24.95 $

• Source of data
• Beitman Radio Diagrams, Vol. 02, 1939

• Mentioned in
• Beitman Radio Diagrams, Vol. 02, 1939 (Machine Age to J(1-2) Stein 98)

• Literature/Schematics (1)
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (January 1939 page 62)

• Literature/Schematics (3)
• Emerson Folder Form. 39-22, 2-39 for 1939.

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
