BM-247 "Snow White"

Emerson Radio & Phonograph Corp.; New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82942
    • alternative name: Emerson Television

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

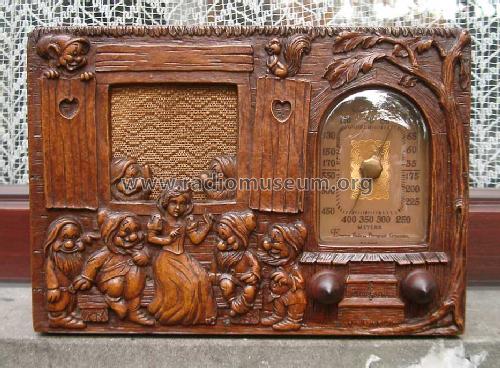

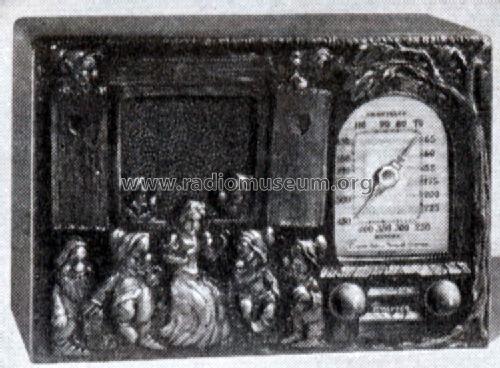

  • Model: BM-247 "Snow White" - Emerson Radio & Phonograph
  • Shape
  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Dimensions (WHD)
  • 275 x 195 x 150 mm / 10.8 x 7.7 x 5.9 inch
  • Notes

  • Case made of pressed wood.

  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Price in first year of sale
  • 14.95 $
  • Literature/Schematics (3)
  • Emerson Folder Form. 39-22, 2-39 for 1939.
