C-134 Ch= C

C-134 Ch= C; Emerson Radio & (ID = 284214) Radio

C-134 Ch= C; Emerson Radio & (ID = 569695) Radio
C-134 Ch= C; Emerson Radio & (ID = 1410962) Radio C-134 Ch= C; Emerson Radio & (ID = 2125973) Radio
C-134 Ch= C; Emerson Radio & (ID = 2125974) Radio C-134 Ch= C; Emerson Radio & (ID = 2125975) Radio
C-134 Ch= C; Emerson Radio & (ID = 1417038) Radio C-134 Ch= C; Emerson Radio & (ID = 1418363) Radio
Use red slider bar for more.
C-134 Ch= C; Emerson Radio & (ID = 1410962) Radio

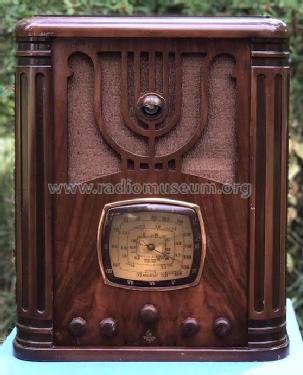

Emerson Radio &: C-134 Ch= C [Radio] ID = 1410962 933x1379
Select picture or schematic to display from thumbnails on the right and click for download.
For model C-134 Ch= C, Emerson Radio & Phonograph Corp.; New York, NY:
Image courtesy of Mark V. Stein for Radiomuseum.org use only. From Table Top Radios Volume 1.

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7 6A8 6K7 6R7 6C5 or 6J7 6F6 or 6L6 5W4
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: C-134 Ch= C - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 17 x 21 x 12.5 inch / 432 x 533 x 318 mm
Notes

BC(540-1800kHz), TROP(1750-6000kHz) and SW(5.5-18.0MHz) bands.
Models above serial number 880050 use 6J7 and 6L6. Ingraham cabinet.

Stein mentions 2 bands.

Price in first year of sale 69.95 $
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before
Literature/Schematics (2) Cathedral & Tombstone Radios (page 104.)

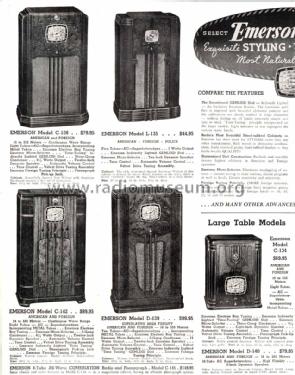

Literature/Schematics (3) Emerson Folder Form-19, 37-6-36, for 1936/1937. Folder Form-19-R, 37-9-36, for 1936/1937.

Model page created by Götz Linss. See "Data change" for further contributors.
