CE-259 Ch= CE

CE-259 Ch= CE; Emerson Radio & (ID = 15811) Radio
CE-259 Ch= CE; Emerson Radio & (ID = 685826) Radio CE-259 Ch= CE; Emerson Radio & (ID = 685835) Radio
CE-259 Ch= CE; Emerson Radio & (ID = 685827) Radio CE-259 Ch= CE; Emerson Radio & (ID = 685828) Radio

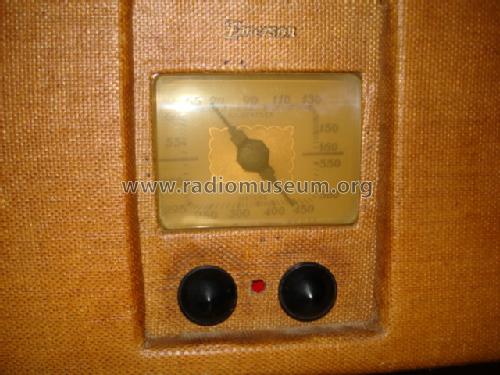

CE-259 Ch= CE; Emerson Radio & (ID = 685830) Radio CE-259 Ch= CE; Emerson Radio & (ID = 685831) Radio
CE-259 Ch= CE; Emerson Radio & (ID = 685833) Radio CE-259 Ch= CE; Emerson Radio & (ID = 685834) Radio
CE-259 Ch= CE; Emerson Radio & (ID = 1409936) Radio CE-259 Ch= CE; Emerson Radio & (ID = 1409937) Radio
Use red slider bar for more.
CE-259 Ch= CE; Emerson Radio & (ID = 685826) Radio
Emerson Radio &: CE-259 Ch= CE [Radio] ID = 685826 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model CE-259 Ch= CE, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7G 1N5G 1N5G 1H5G 1C5G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 1.5;90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: CE-259 Ch= CE - Emerson Radio & Phonograph
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 225 x 220 mm / 12.4 x 8.9 x 8.7 inch
Notes

Battery radio. BC (540-1730kHz), models with serial number above 2408049 BC (530-1600kHz) band. Built-in loop antenna.

Net weight (2.2 lb = 1 kg) 15 lb 0 oz (15 lb) / 6.810 kg
Price in first year of sale 29.95 $
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Mentioned in Rider's Perpetual, Volume 10 = 1939 and before
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (January 1939 page 62 / February 1939 page 5)
Literature/Schematics (3) Emerson Folder Form. 39-22, 2-39 for 1939.


All listed radios etc. from Emerson Radio & Phonograph Corp.; New York, NY
Here you find 1884 models, 995 with images and 1406 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
