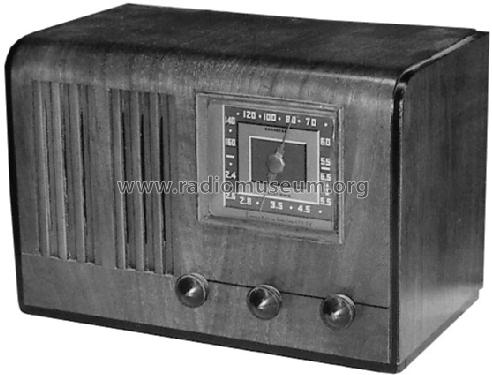

For model CG276 Ch= CG, Emerson Radio & Phonograph Corp.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8 6K7 6Q7 or 6SQ7 25L6 25Z6
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: CG276 Ch= CG - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes BC(540-1700kHz) and SW(2300-6600kHz) bands. Chassis below serial number 2616849 use 6Q7. All GT tubes also possible. Ingraham cabinet.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965 (Collector's Guide to AR6, Ed. Slusser)
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98
