• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109117

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6SQ7 25L6 25Z6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

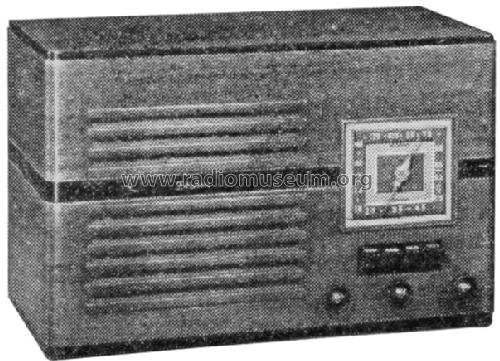

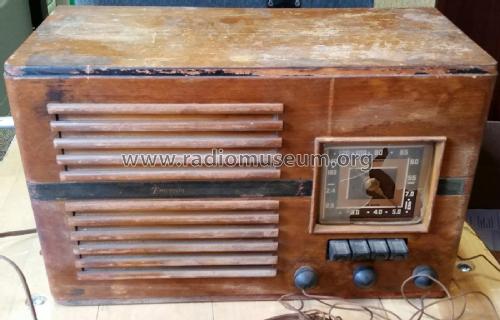

• Model: CY-286 Ch= CY - Emerson Radio & Phonograph

• Shape
• Tablemodel with Push Buttons.

• Notes

• BC (540-1700kHz) and SW (2250-7500kHz) bands. 4 push-button station selectors. All GT tubes also possible.

• Price in first year of sale
• 29.95 $

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)
• Emerson Folder Form. 40-31, 1-40 for 1940.

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
