For model DB-296 Ch= DB, Emerson Radio & Phonograph Corp.; New York, NY:
Copy from Ebay seller Bradford

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12K7 12SQ7 50L6 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: DB-296 Ch= DB - Emerson Radio & Phonograph
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

BC (540-1600kHz) band. All GT tubes also possible.

Price in first year of sale 17.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before

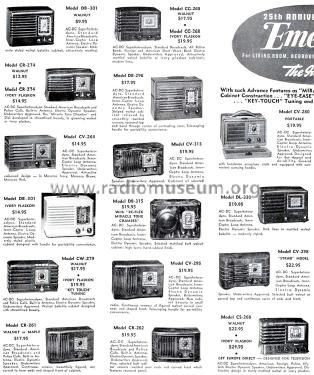

Literature/Schematics (3) Emerson Folder Form. 40-31, 1-40 for 1940.
