• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38962

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7GT 6SK7GT 6SQ7GT 6V6GT 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

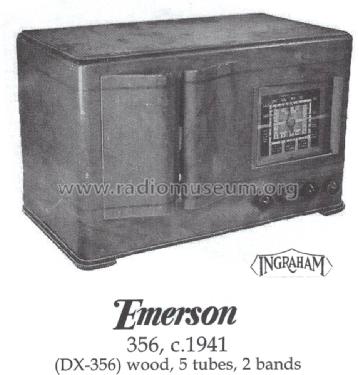

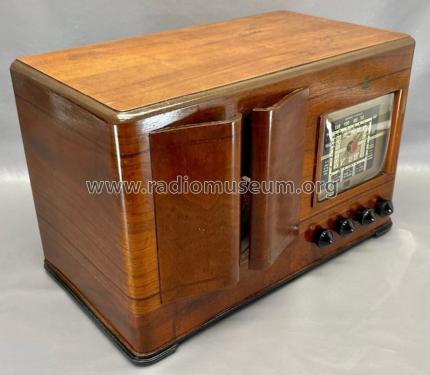

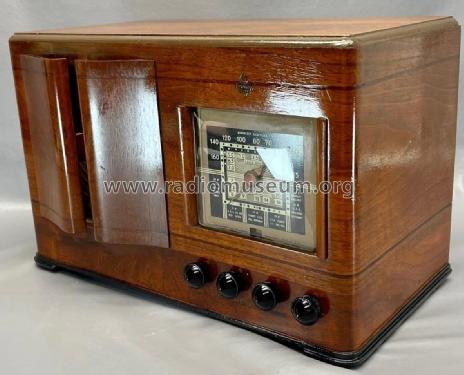

• Model: DX356 Ch= DX - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Notes
• BC(540-1750kHz), SW1(2300-7500kHz) and SW2(6.9-22MHz) bands. Built-in loop antenna for BC band. Ingraham cabinet.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 73.)
