• Country
• Spain

• Manufacturer / Brand
• Emerson Electrónica, CECSA, Teinelsa; Barcelona

• Year
• 1969 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 363200

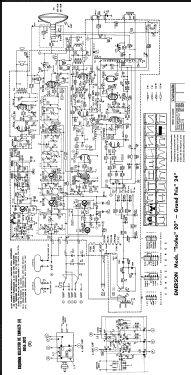

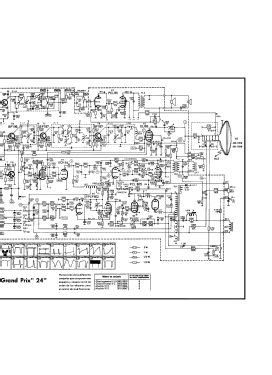

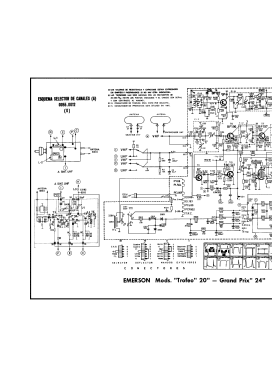

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EL183 ECH84 PCL805 PCF802 PL504 PY88 PCL86 A61-120W

• Number of Transistors
• 8

• Semiconductors
• AF109 AF106 BF196 BF197 BF197 BC157 BC147 BF197 AA119 E30C120 OA90 OA95 TV11 V40C2

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Grand Prix 24" - Emerson Electrónica, CECSA,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Emerson Electrónica (CECSA), Grand Prix

  TV B/N 24" con selector rotativo de VHF y sintonizador de UHF

• Mentioned in
• Esquemario TV REDE, Tomo VII, 1971

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
