• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39004

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 or 6Q7G 43 or 25B5 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker

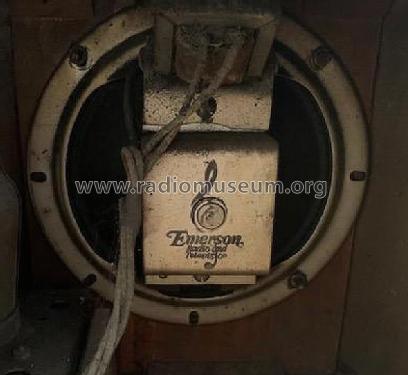

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• from Radiomuseum.org

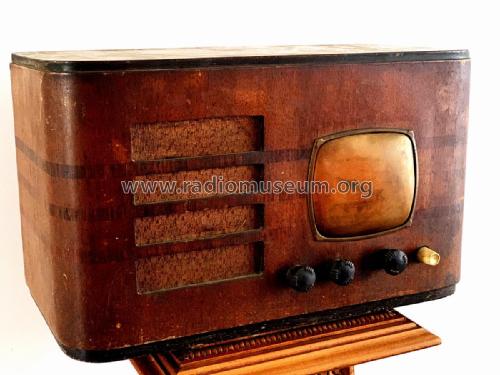

• Model: F122 Ch= F - Emerson Radio & Phonograph

• Notes
• LW(150-375kHz), BC(540-1600kHz) and SW(5.7-17.5MHz) bands. Models with serial number greater than 862650 use 6Q7 and 25B5 tubes.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Rider's Perpetual, Volume 9 = 1938 and before
