• Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 39058
    • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

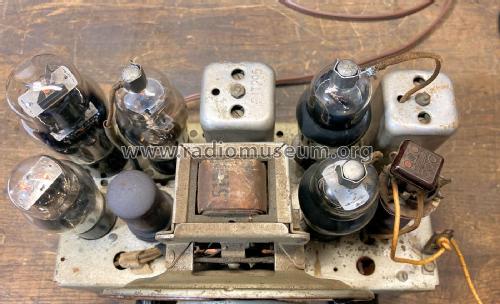

  • Model: J106 Ch= J - Emerson Radio & Phonograph
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 12.25 x 8.75 x 5.75 inch / 311 x 222 x 146 mm
  • Notes
  • BC (540-1725kHz) band.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Literature/Schematics (3)
  • Emerson Folder Form-19-R, 37-9-36, for 1936/1937.
