19 Miracle Six Ch= UV4

19 Miracle Six Ch= UV4; Emerson Radio & (ID = 85021) Radio
19 Miracle Six Ch= UV4; Emerson Radio & (ID = 178790) Radio 19 Miracle Six Ch= UV4; Emerson Radio & (ID = 822060) Radio
19 Miracle Six Ch= UV4; Emerson Radio & (ID = 822061) Radio 19 Miracle Six Ch= UV4; Emerson Radio & (ID = 822063) Radio
19 Miracle Six Ch= UV4; Emerson Radio & (ID = 572668) Radio 19 Miracle Six Ch= UV4; Emerson Radio & (ID = 1265845) Radio
19 Miracle Six Ch= UV4; Emerson Radio & (ID = 1410908) Radio
Use red slider bar for more.
19 Miracle Six Ch= UV4; Emerson Radio & (ID = 178790) Radio

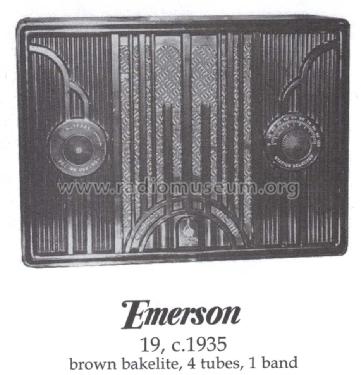

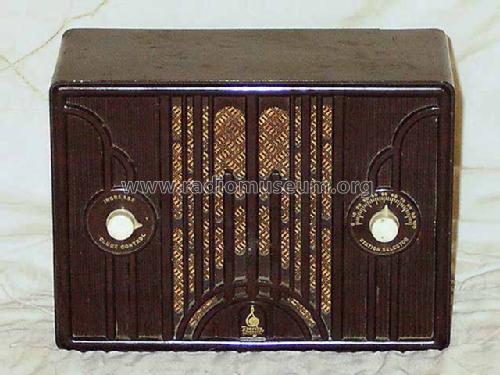

Emerson Radio &: 19 Miracle Six Ch= UV4 [Radio] ID = 178790 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 19 Miracle Six Ch= UV4, Emerson Radio & Phonograph Corp.; New York, NY:
Later cabinet

Country:  United States of America (USA)
Manufacturer / Brand:  Emerson Radio & Phonograph Corp.; New York, NY
alternative name

Emerson Television
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6F7 43 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 19 Miracle Six Ch= UV4 - Emerson Radio & Phonograph
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.4 x 6.9 x 5 inch / 239 x 175 x 127 mm

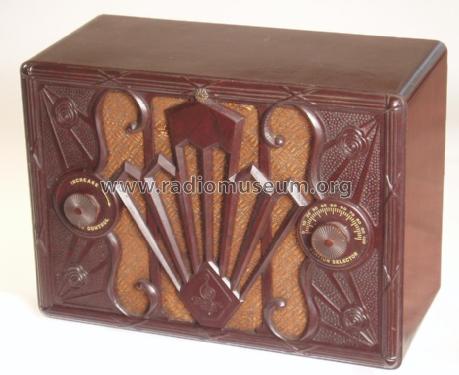

Notes The Emerson model 19 MIracle Six has a brown bakelite cabinet. The same chassis is used in black cabinet with chrome trimming as model 17 for $ 25. "Six-Tube performance in a Compact" is the wording of an ad in Radio Retailing in November 1934.
Price in first year of sale 20.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Table Top Radios Vol. 1 Stein 98 (Beitman Radio Diagrams 1926-1938)
Literature/Schematics (1) A Blast from the Past
