• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 39108

• • alternative name: Emerson Television

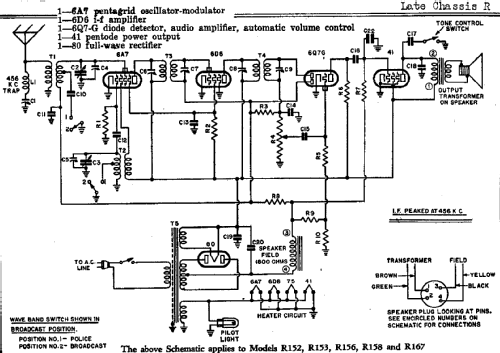

Click on the schematic thumbnail to request the schematic as a free document.

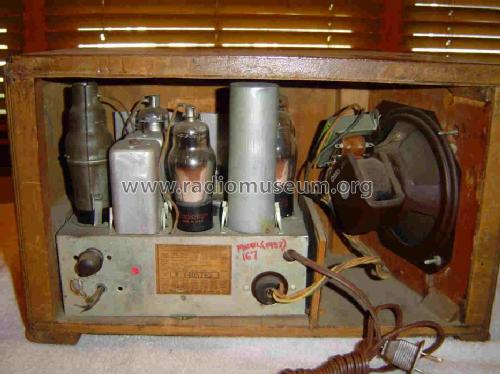

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 or 6D6 75 or 6Q7G 41 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 3 W (unknown quality)

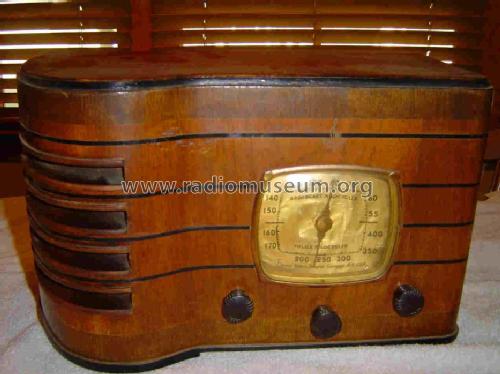

• Material
• Wooden case

• from Radiomuseum.org
• Model: R-167 Ch= R - Emerson Radio & Phonograph

• Shape
• Tablemodel, low profile (big size).

• Notes

• BC(540-1580kHz) and TROP(1580-4200kHz) bands. Tube 75 used in serial numbers below 1311103, 78 in serial numbers below 1043350. Ingraham cabinet. Cabinet is made of Walnut and Oriental wood and has the "Miracle Tone Chamber."

• Price in first year of sale
• 29.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (September 1937.)

• Literature/Schematics (3)
• Emerson Folder Form. 38-3, 5-37 for 1938.
