• Country
• Great Britain (UK)

• Manufacturer / Brand
• Emerson Electronics Ltd; London

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149263

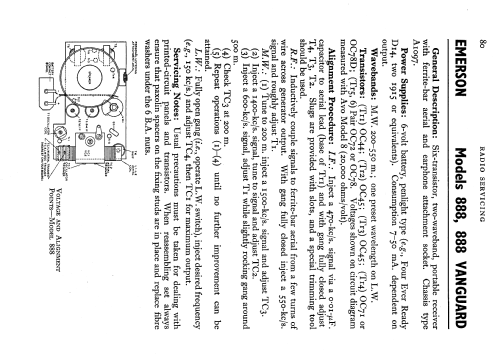

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC44 OC45 OC45 OC71 or. OC78D OC72 or. OC78

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

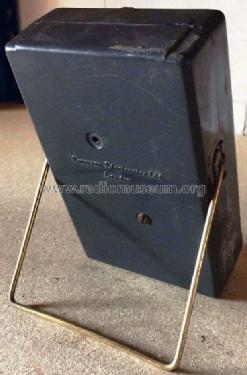

• Model: Vanguard 888 Ch= A1097 - Emerson Electronics Ltd;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• No tuning on the LW band, pre-set to one station only. Same chassis as model 888.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 16 models, 8 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Emerson Electronics Ltd; London
