• Country
• Czechoslovakia

• Manufacturer / Brand
• EMPO, Severoceska Tovarna El., Sp. S.R.O (ESTE).; Praha-Cakovice

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23009

• • alternative name: Severoceska Tovarna Elektromeru
  • Brand: ESTE

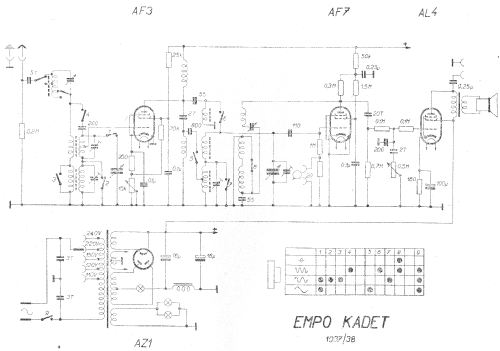

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AF3 AF7 AL4 AZ1

• Main principle
• TRF with regeneration; ZF/IF 1 kHz; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kadet - EMPO, Severoceska Tovarna El.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 536 x 282 x 238 mm / 21.1 x 11.1 x 9.4 inch

• Price in first year of sale
• 1,290.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
