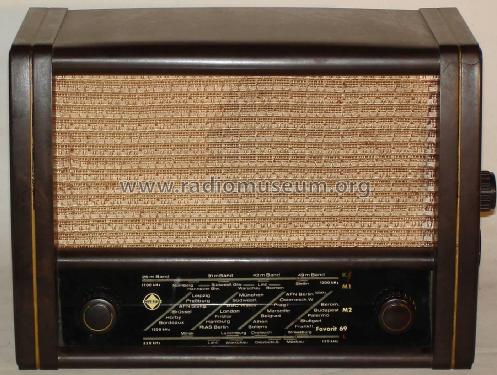

Favorit 69W

• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1576

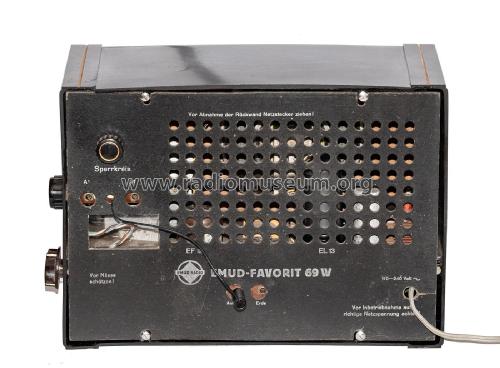

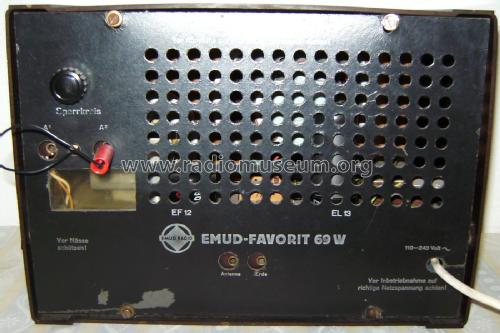

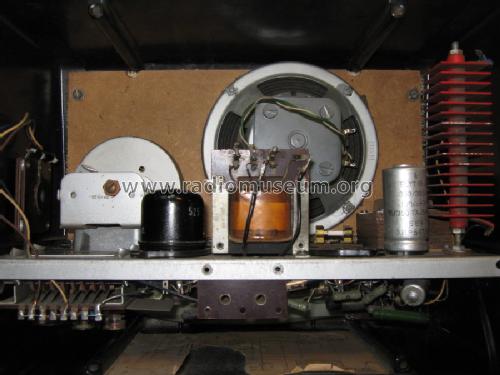

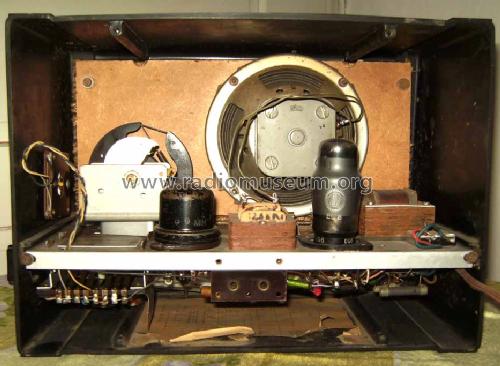

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EF12 or EF6 EL13 or EL8

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Favorit 69W - Emud, Ernst Mästling; Ulm

• Dimensions (WHD)
• 295 x 215 x 150 mm / 11.6 x 8.5 x 5.9 inch

• Notes
• Der Katalog (VERG) #438 bringt EMUD ab Seite 90 unter Mästling (Ernst Mästling), Ulm/Donau. 2 mal Mitelwelle

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 69.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference

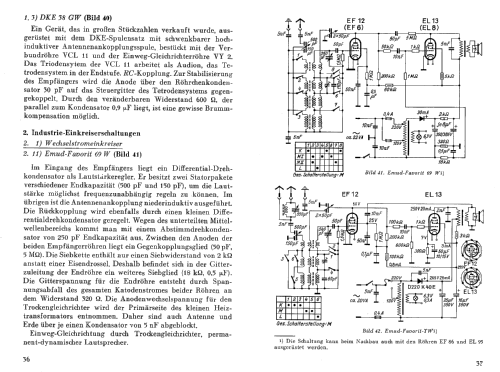

• Lange Schaltungen der Funkindustrie, Buch 3

• Mentioned in
• Funk-Technik (FT) (5017)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
