Emud, Ernst Mästling: Favorit UT [Radio] ID = 32223 425x326
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1954–1957 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: EC92 ECH81 EL41 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Tr.Gl.=Metal-rectif. |
| Main principle | TRF with regeneration; 1 AF stage(s) |
|---|---|
| Tuned circuits | 1 AM circuit(s) 6 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120/220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch |
| Power out | |
| from Radiomuseum.org | Model: Favorit UT - Emud, Ernst Mästling; Ulm |
| Material | Bakelite case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 300 x 210 x 145 mm / 11.8 x 8.3 x 5.7 inch |
| Notes | AM: Einkreisempfänger/Audion; FM: Superhet 2 abgestimmte u. 4 ZF-Kreise; ZF 10,7 MHz; Flankendemodulation. |
| Net weight (2.2 lb = 1 kg) | 3.2 kg / 7 lb 0.8 oz (7.048 lb) |
| Price in first year of sale | 99.00 DM |
| Source of data | Radiokatalog Band 1, Ernst Erb |

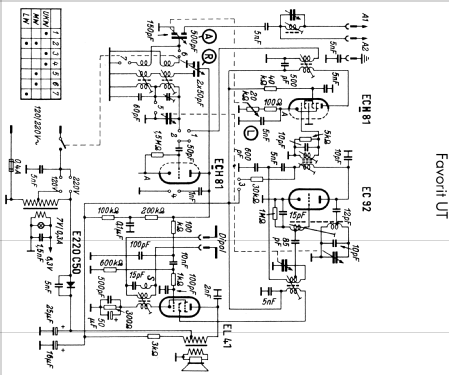

| Circuit diagram reference | Lange Schaltungen der Funkindustrie, Buch 3 |
| Mentioned in | Handbuch des Rundfunk- und Fernseh-Grosshandels 1954/55 |
