FB4665
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1965 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 324596

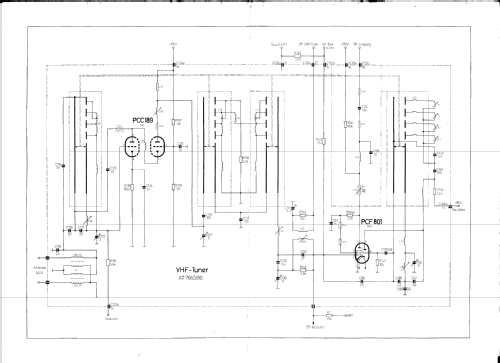

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- PCC189 PCF801 EF183 EF80 EF80 EF80 PCL200 PCL86 ECH84 ECH81 PCL85 PL500 PY88 DY86 A59-12W
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FB4665 - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 690 x 484 x 355 mm / 27.2 x 19.1 x 14 inch
- Notes
-
Tisch-Fernsehgerät FB4665 mit 59 cm S/w-Bildröhre. Anschluss für Fernbedienung FB200.
Wahrscheinlich für die Handelskette Funkberater hergestellt.
- Net weight (2.2 lb = 1 kg)
- 31 kg / 68 lb 4.5 oz (68.282 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Dietrich. See "Data change" for further contributors.
