Phonomat 299

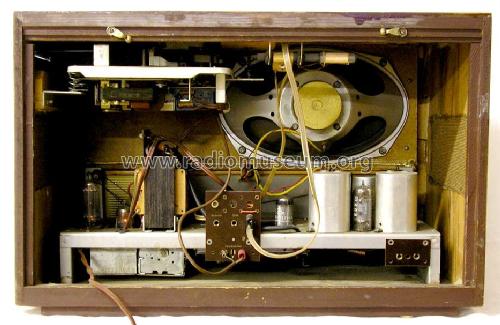

Phonomat 299; Emud, Ernst Mästling (ID = 99419) Radio Phonomat 299; Emud, Ernst Mästling (ID = 99421) Radio
Phonomat 299; Emud, Ernst Mästling (ID = 99422) Radio Phonomat 299; Emud, Ernst Mästling (ID = 99420) Radio
Phonomat 299; Emud, Ernst Mästling (ID = 914848) Radio Phonomat 299; Emud, Ernst Mästling (ID = 1220460) Radio
Phonomat 299; Emud, Ernst Mästling (ID = 1220462) Radio Phonomat 299; Emud, Ernst Mästling (ID = 1220463) Radio

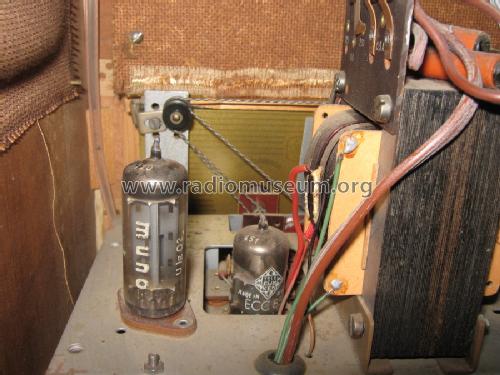

Phonomat 299; Emud, Ernst Mästling (ID = 1220466) Radio Phonomat 299; Emud, Ernst Mästling (ID = 1220468) Radio
Use red slider bar for more.
Phonomat 299; Emud, Ernst Mästling (ID = 99419) Radio
Emud, Ernst Mästling: Phonomat 299 [Radio] ID = 99419 933x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonomat 299, Emud, Ernst Mästling; Ulm:
an der rechten Schmalseite der Schlitz für den 45 rpm - Single - Plattenspieler

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 EAA91 EM80 ECL82 EZ80
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Phonomat 299 - Emud, Ernst Mästling; Ulm
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Technische Daten wie Rekord 219.
Zusätzlich mit Philips Phono-Automat Mignon.
Price in first year of sale 299.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
