Record 42-W

Record 42-W; Emud, Ernst Mästling (ID = 1963382) Radio

Record 42-W; Emud, Ernst Mästling (ID = 14143) Radio

Record 42-W; Emud, Ernst Mästling (ID = 5860) Radio

Record 42-W; Emud, Ernst Mästling (ID = 14144) Radio

Record 42-W; Emud, Ernst Mästling (ID = 350195) Radio

Record 42-W; Emud, Ernst Mästling (ID = 918530) Radio
Record 42-W; Emud, Ernst Mästling (ID = 684385) Radio Record 42-W; Emud, Ernst Mästling (ID = 757246) Radio
Record 42-W; Emud, Ernst Mästling (ID = 757248) Radio Record 42-W; Emud, Ernst Mästling (ID = 707800) Radio
Record 42-W; Emud, Ernst Mästling (ID = 262818) Radio Record 42-W; Emud, Ernst Mästling (ID = 262819) Radio
Record 42-W; Emud, Ernst Mästling (ID = 262820) Radio Record 42-W; Emud, Ernst Mästling (ID = 272153) Radio
Record 42-W; Emud, Ernst Mästling (ID = 278202) Radio Record 42-W; Emud, Ernst Mästling (ID = 489356) Radio
Use red slider bar for more.
Record 42-W; Emud, Ernst Mästling (ID = 684385) Radio
Emud, Ernst Mästling: Record 42-W [Radio] ID = 684385 800x600
Select picture or schematic to display from thumbnails on the right and click for download.

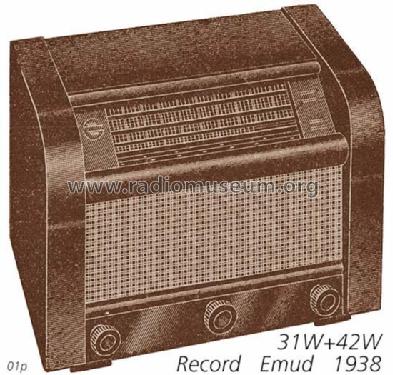

For model Record 42-W, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF3 AF7 AL4 AZ1
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Record 42-W - Emud, Ernst Mästling; Ulm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 340 x 280 mm / 17.9 x 13.4 x 11 inch
Notes Gehäuse = 31W!
Net weight (2.2 lb = 1 kg) 12.8 kg / 28 lb 3.1 oz (28.194 lb)
Price in first year of sale 151.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
