Super 179GW UM11

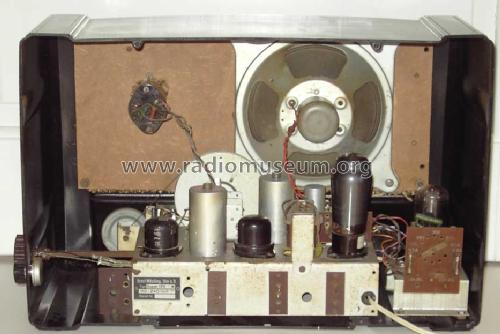

Super 179GW; Emud, Ernst Mästling (ID = 1465194) Radio Super 179GW; Emud, Ernst Mästling (ID = 1465195) Radio
Super 179GW; Emud, Ernst Mästling (ID = 1465196) Radio Super 179GW; Emud, Ernst Mästling (ID = 1465197) Radio
Super 179GW; Emud, Ernst Mästling (ID = 1465198) Radio Super 179GW; Emud, Ernst Mästling (ID = 1465199) Radio

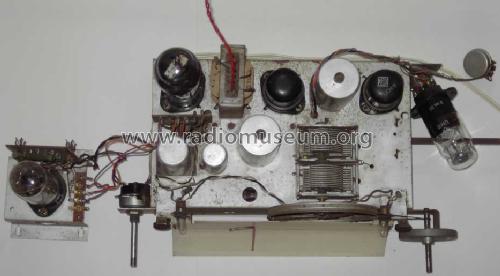

Super 179GW; Emud, Ernst Mästling (ID = 1465200) Radio
Use red slider bar for more.
Super 179GW; Emud, Ernst Mästling (ID = 1465194) Radio
Emud, Ernst Mästling: Super 179GW [Radio] ID = 1465194 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 179GW UM11, Emud, Ernst Mästling; Ulm

Country:  Germany
Manufacturer / Brand:  Emud, Ernst Mästling; Ulm
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH11 UBF11 UCL11 UY11 UM11
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Super 179GW [UM11] - Emud, Ernst Mästling; Ulm
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 485 x 315 x 235 mm / 19.1 x 12.4 x 9.3 inch

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
