Super 179W Schlüsselröhren
Use red slider bar for more.

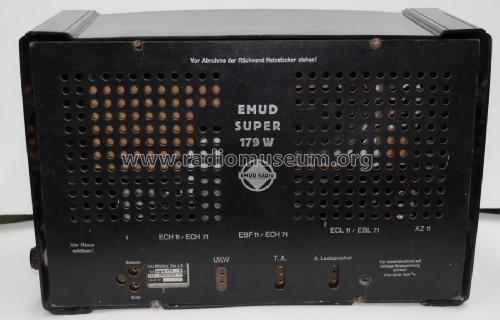

Emud, Ernst Mästling: Super 179W [Radio] ID = 2339502 1400x986
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950/1951 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: ECH71 ECH71 EBL71 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Super 179W [Schlüsselröhren] - Emud, Ernst Mästling; Ulm |
| Material | Bakelite case |
| Dimensions (WHD) | 485 x 315 x 235 mm / 19.1 x 12.4 x 9.3 inch |
| Notes | 2 Varianten, auch mit EM72 |
| Net weight (2.2 lb = 1 kg) | 8 kg / 17 lb 9.9 oz (17.621 lb) |
| Source of data | Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange Schaltungen der Funkindustrie, Buch 3 |
