Volkssuper WH
Emud, Ernst Mästling; Ulm
- Country
- Germany
- Manufacturer / Brand
- Emud, Ernst Mästling; Ulm
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 193199
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120; 220; Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org

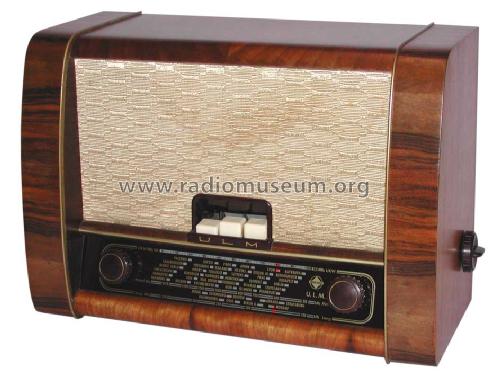

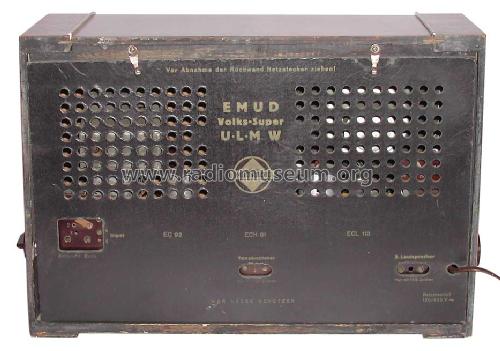

- Model: Volkssuper WH - Emud, Ernst Mästling; Ulm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 425 x 300 x 200 mm / 16.7 x 11.8 x 7.9 inch
- Notes
- Siehe auch Emud Volkssuper W im Bakelitgeäuse.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
