ECL113

Information - Help
ID = 718

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Developer: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Triode-Beam Power Tube   Audio Frequency
Identical to ECL113
Similar Tubes
Multiple differences or of other kind:
  ECL81 ; PCL113 ; PCL81
First year 1950 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Feb.1950 : Radio-Mentor 1950, Heft 2
Predecessor Tubes ECL11
Successor Tubes ECL82   ECL86   PCL113

Base Rimlock base B8A
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.6 Ampere / Indirect / Specified voltage AC/DC
Description

Triode + beam power output tube, launched early 1950 by Telefunken only.

To compete with the Philips Rimlock tubes, Telefunken initially planned a «PIKO»- series, consisting of EAF113, ECH113, ECL113 and EZ113. Only the ECL113 remained, while the rest became matched to Rimlock as EAF42, ECH42 and EZ40.

As with only 12% space volume it attained 60% output power of the former ECL11, the ECL113 was ideal for small radios. But recommended only as car-radio push-pull output-tube, its success was very modest.


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
22 x 77 x mm / 0.87 x 3.03 x inch
Tube prices 7 Tube prices (visible for members only)

ECL113: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
    More ...

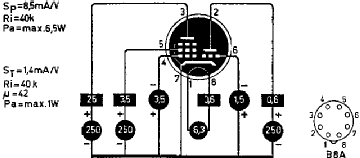

ecl113_so.png ECL113: rtt
Anonymous 10 Collector

More ...

Just Qvigstad
ECL113: Telefunken Röhrenhandbuch
Wolfgang Bauer

More ...
Usage in Models 4= 1950 ; 1= 1951? ; 5= 1951 ; 2= 1952?? ; 2= 1952? ; 8= 1952 ; 1= 1953?? ; 3= 1953? ; 10= 1953 ; 3= 1954? ; 5= 1954 ; 5= 1955 ; 1= 1956?? ; 1= 1956? ; 2= 1956 ; 1= 1957?? ; 1= 1958?? ; 1= 1958? ; 1= 1962??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):57


Collection of



ECL113
