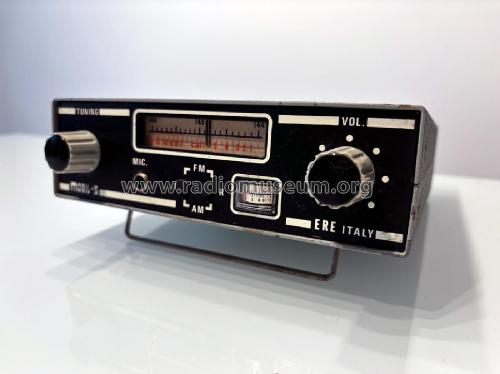

VHF Transceiver Mobil-5

ERE; Stradella (PV)

  • Year
  • 1973
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 189833

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 25
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 17000/1750 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 13.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: VHF Transceiver Mobil-5 - ERE; Stradella PV
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 180 x 50 x 205 mm / 7.1 x 2 x 8.1 inch
  • Notes
  • Stazione fissa alimentata da alimentatore stabilizzato oppure mobile dotata di accessori per il fissaggio sul'autoveicolo.
    Ricetrasmettitore in VHF 144-146 MHz. VFO per operare su tutta la gamma 144-146 MHz in AM ed FM.
    Altoparlante incorporato e presa per altoparlante esterno o cuffia a 8 Ω.
    Potenza input allo stadio finale 5 W in FM - 2 W in AM a 13,5 V.
    Sensibilità in ricezione 1 µV in AM - 0,5 µV in FM.
    ANL sempre inserito con soglia autoregolabile in AM.
    Risposta in frequenza audio 300 ÷ 3.000 Hz
    Protezione contro l'inversione di polarità.
    S-meter in RX e indicazione della potenza relativa di uscita in TX.
    Per essere usato sui ponti esiste un telaio da inserire internamente.

    25 Transistor, 2 IC, 1 Diodo Varicap, 1 Diodo Zener e 5 Diodi, elencati uno per tipo e non tutti.

    Frequency range from 144 MHz to 146 MHz; FM and AM modulation; RF output power 5W on FM and 2W on AM at 13.5V; RF sensitivity 1 microV AM and 0.5 microV on FM; ANL.

  • Net weight (2.2 lb = 1 kg)
  • 0.8 kg / 1 lb 12.2 oz (1.762 lb)
  • Source of data
  • -- Original-techn. papers.
