UL535

UL535; EREA E.R.E.A., (ID = 1731949) Radio UL535; EREA E.R.E.A., (ID = 1731950) Radio

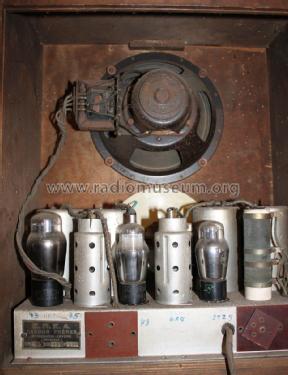

UL535; EREA E.R.E.A., (ID = 1731951) Radio UL535; EREA E.R.E.A., (ID = 1731952) Radio
UL535; EREA E.R.E.A., (ID = 1731953) Radio UL535; EREA E.R.E.A., (ID = 1731954) Radio
UL535; EREA E.R.E.A., (ID = 1787279) Radio
Use red slider bar for more.
UL535; EREA E.R.E.A., (ID = 1731949) Radio
EREA E.R.E.A.,: UL535 [Radio] ID = 1731949 933x1028
Select picture or schematic to display from thumbnails on the right and click for download.
For model UL535, EREA (E.R.E.A., Cardon Frères); Antwerpen:
serial number 5029

Country:  Belgium
Manufacturer / Brand:  EREA (E.R.E.A., Cardon Frères); Antwerpen
Year: 1935 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 43 25Z5
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 130; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: UL535 - EREA E.R.E.A., Cardon Frères;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 372 x 445 x 210 mm / 14.6 x 17.5 x 8.3 inch

Model page created by a member from B. See "Data change" for further contributors.



All listed radios etc. from EREA (E.R.E.A., Cardon Frères); Antwerpen
Here you find 4 models, 1 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
