Ergos 582

Ergos 582; Radio-Célard, Ergos, (ID = 222412) Radio
Ergos 582; Radio-Célard, Ergos, (ID = 301255) Radio
Use red slider bar for more.
Ergos 582; Radio-Célard, Ergos, (ID = 301255) Radio
Radio-Célard, Ergos,: Ergos 582 [Radio] ID = 301255 900x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ergos 582, Radio-Célard, Ergos, Célard-Ergos; Grenoble, Nice, Paris

Country:  France
Manufacturer / Brand:  Radio-Célard, Ergos, Célard-Ergos; Grenoble, Nice, Paris
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 EZ3
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Ergos 582 - Radio-Célard, Ergos, Célard-
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 480 x 370 x 320 mm / 18.9 x 14.6 x 12.6 inch
External source of data Serge Laffont/Martin Renoth

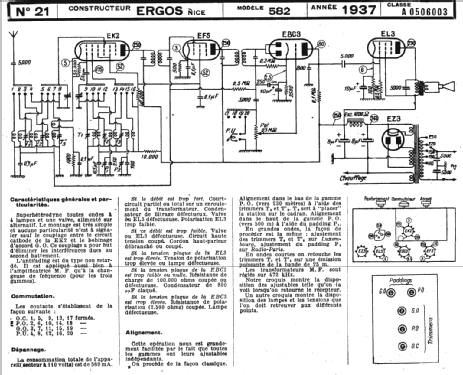

Mentioned in Schémathèque Toute la Radio (STR) (No. 21)


All listed radios etc. from Radio-Célard, Ergos, Célard-Ergos; Grenoble, Nice, Paris
Here you find 141 models, 113 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
