• Country
• United States of America (USA)

• Manufacturer / Brand
• Electrical Research Laboratories Inc. (Erla); Chicago, Illinois

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38078

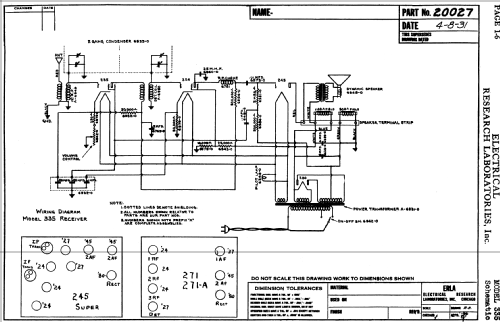

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UY224 UY224 UY224 UY227 UY227 UX245 UX280

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 271-A - Electrical Research

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Cathedral with squared top; 4-gang condenser.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931)
