Electrical Research: 50-P [Radio] ID = 1483600 675x875

Select picture or schematic to display from thumbnails on the right and click for download.

For model 50-P, Electrical Research Laboratories Inc. (Erla); Chicago, Illinois:

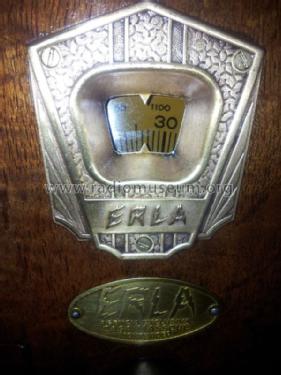

For some time I have been looking for external sources with images of Erla model P-50, but still could not find. I have a model Erla with features similar to the P-50: 5 tubes (47 57 57 58 80 - all from the early 1930s), wooden cabinet with cathedral shape, only one wave band - BC, dial with direct vision ...) Although there are no labels in this radio, I understand these characteristics are strong evidence that this model is the P-50, so I am sending these photos for your consideration.

Country:

United States of America (USA)

Manufacturer / Brand:

Electrical Research Laboratories Inc. (Erla); Chicago, Illinois

Year: 1931/1932

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: 47 57 57 58 80

Wave bands	Broadcast only (MW).
Details
Power type and voltage	Alternating Current supply (AC) / 220 Volt

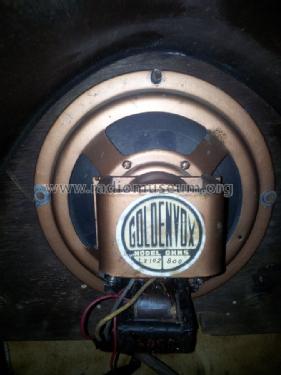

Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org	Model: 50-P - Electrical Research
Material	Wooden case
Shape	Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD)	385 x 330 x 230 mm / 15.2 x 13 x 9.1 inch
Notes	[3331455B]
Net weight (2.2 lb = 1 kg)	6.8 kg / 14 lb 15.6 oz (14.978 lb)
Price in first year of sale	370.00 SFR
External source of data	E. Erb 3-907007-36-0

All listed radios etc. from Electrical Research Laboratories Inc. (Erla); Chicago, Illinois
Here you find 131 models, 45 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
