75 Ch= 231 C 150$

75 Ch= 231; Electrical Research (ID = 636442) Radio
Use red slider bar for more.
75 Ch= 231; Electrical Research (ID = 636442) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Electrical Research Laboratories Inc. (Erla); Chicago, Illinois
Year: 1930 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 32 32 32 30 30 71A 71A
Main principle Special principle (see notes); Screengrid 1926-1935
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 32 & 135 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 75 Ch= 231 [C 150$] - Electrical Research
Material Wooden case
Shape Console with any shape - in general
Notes

Farm radio, requires 32 V and an additional 135 V dry battery (or eliminator).
One dial (primary tuning control knob); 4-gang condenser; push-pull af output stage.

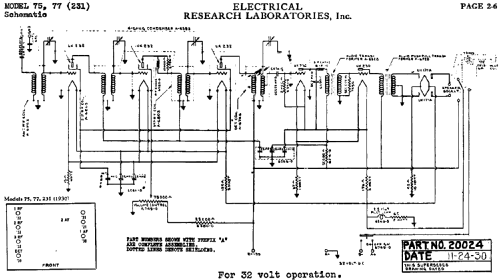

Dated 1929 since "...Grinder" and "Radio Coll. Guide" say 1928, while schematic as well as the "Radio Set Socket Layout" show 1930.

According to Tyne, page 329, the tube UX230 (30) and the tube UX232 (32) arrived in 1930. Therefore this model can not be from before or had another first tube line-up.

Price in first year of sale 150.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Mentioned in Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (1) Radio Set Socket Layout 1921 to 1935, RCA
