Monodic Ch= S50 6 tube table version

Monodic Ch= S50; Electrical Research (ID = 1389708) Radio
Monodic Ch= S50; Electrical Research (ID = 1389709) Radio Monodic Ch= S50; Electrical Research (ID = 374710) Radio
Monodic Ch= S50; Electrical Research (ID = 374711) Radio Monodic Ch= S50; Electrical Research (ID = 374712) Radio
Monodic Ch= S50; Electrical Research (ID = 374713) Radio Monodic Ch= S50; Electrical Research (ID = 917187) Radio
Monodic Ch= S50; Electrical Research (ID = 1389710) Radio Monodic Ch= S50; Electrical Research (ID = 1389711) Radio
Monodic Ch= S50; Electrical Research (ID = 1389712) Radio
Use red slider bar for more.
Monodic Ch= S50; Electrical Research (ID = 1389709) Radio
Electrical Research: Monodic Ch= S50 [Radio] ID = 1389709 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monodic Ch= S50 6 tube table version, Electrical Research Laboratories Inc. (Erla); Chicago, Illinois:

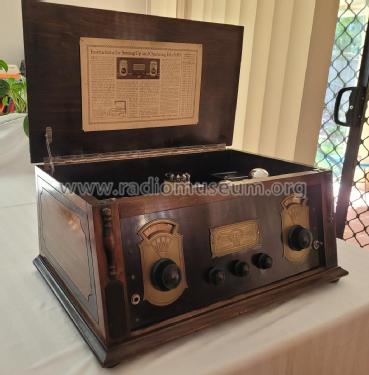

Erla S50 von vorne. Urheber: Dietmar Herrmann, Elaubnis zur Veröffentlichung per Mail erteilt.

Country:  United States of America (USA)
Manufacturer / Brand:  Electrical Research Laboratories Inc. (Erla); Chicago, Illinois
Year: 1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UX201A UX201A UX201A UX201A UX201A UX201A
Main principle TRF without regeneration; 3 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 5 & 45 & 90 & 9 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Monodic Ch= S50 [6 tube table version] - Electrical Research
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

3 RF stages.

2 dial - 3 tuning capacitors. The right hand dial drives 2 tuning capacitors.

Grid-leak detector.

There is also a version with 5 tubes. The exact difference is not known.



Price in first year of sale 146.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
